Nasal sill augmentation: an overlooked concept in rhinoplasty—a technical note and review of the literatures
Maxillofacial Plastic and Reconstructive Surgery volume 43, Article number: 14 (2021)
Abstract
Background
Nasal sill is one of the components of the alar ring, affecting the esthetic outcomes of rhinoplasty; accordingly, we developed a novel technique to adjust defects in this area and compared it with the available techniques.
Methods
Our technique was based on creating a tunnel access to the nasal sill area through an incision made in the lower third of the columella using the open approach or through a nostril base incision in patients, who underwent alar base reduction, followed by insertion of a cartilaginous graft into the marked defect area.
Results
A total number of 54 patients with a defect in the nasal sill area were included in this study. Thirty-one patients underwent open rhinoplasty with the sill approach from the lower third of the columella, while 23 patients underwent rhinoplasty with a nostril base approach for nasal sill augmentation procedure. There were no reports of patient dissatisfaction, infection, bleeding, sensory dysfunction, or remaining asymmetry of the sill area.
Conclusion
Based on the findings of the present study, this technique can be successfully used in reconstructing the nasal sill area with minimal complications and morbidity.
Background
Esthetic rhinoplasty has become one of the most popular surgeries among candidates for cosmetic surgery [1]. Research on rhinoplasty has increased over the past decades, and surgeons and researchers are paying particular attention to new methods and approaches for achieving the best clinical outcomes. According to our literature review, the majority of published studies have investigated esthetic rhinoplasty and reconstructive surgical procedures [2]. Overall, attention to the anatomy of cartilages and bones in the nasal area, which plays an important role in the esthetics and/or function of the nose, can positively affect the outcomes of the rhinoplasty.
A comprehensive understanding of the unique anatomy of nasal sills is very important, as it exerts prominent effects on the size and shape of nostrils, and more generally, on the esthetic outcomes of nasal procedures [3, 4]. So far, several techniques have been introduced for nasal sill reduction. Nasal sill excision, with or without alar wedge excision, is a method for decreasing the amount of alar flare and also changing the nostril size, shape, and angle as part of the rhinoplasty procedure [5]. However, care must be provided during these procedures, as improper resection of the nasal sill soft tissue can result in deformities, such as tear-shaped nostrils [6].
On the contrary, nasal sill area augmentation has not received much attention so far, although the use of this technique is quite practical for cases, such as uni/bilateral cleft lip or cleft lip and palate, traumatic lesions, congenital asymmetry of the nostril size, secondary revision surgeries, and reconstruction of defects caused by malignancies (e.g., basal cell carcinoma) [7]. So far, few methods and techniques have been introduced for the nasal sill graft procedure [5, 8,9,10]. Therefore, in this study, we aimed to introduce our novel sill graft technique that can be safely used for most of the aforementioned cases.
This study aims to introduce a novel technique for nasal sill augmentation and compare it with previous techniques briefly. The hypothesis is that the clinical outcome of this technique is optimal esthetic results with minimal morbidity and postoperative complications.
Methods
Indications
-
1.
During esthetic rhinoplasty, the need for nasal sill grafting/augmentation may be considered by a surgeon during an esthetic surgical procedure on the nose. For instance, when esthetic rhinoplasty is undertaken to reduce the width of the columellar base, the soft tissue complex, including muscles, ligaments, fibrosis tissue, and fat, is removed. The surgeon then reduces the width of the columellar base by suturing the structures in close proximity. The possibility of hollowing in the sill area can be one of the side effects of this process that must be considered by surgeons, and appropriate measures must be taken to adjust it. Overall, the sill graft can be considered as an appropriate treatment option for this condition.
-
2.
In patients with cleft lip and palate, the lack of a well-defined nostril sill is often due to the presence of a poor-quality scar tissue. The decision about the type of graft is made, depending on the quality of soft tissue in the area. Scarred and adherent soft tissue quality may require the use of a chondrocutaneous composite graft for the reconstruction procedure.
-
3.
Severe deviation of the nasal septum is another factor that may significantly affect the bulging of the sill area. One of the most serious complications of this condition is the asymmetry of the nostril sills, which may not be even compensated by the correction of the nasal septum deviation and may require separate reconstruction.
-
4.
Inherent or trauma-related nasal sill deformities, besides deformities due to malignancies.
Surgical technique

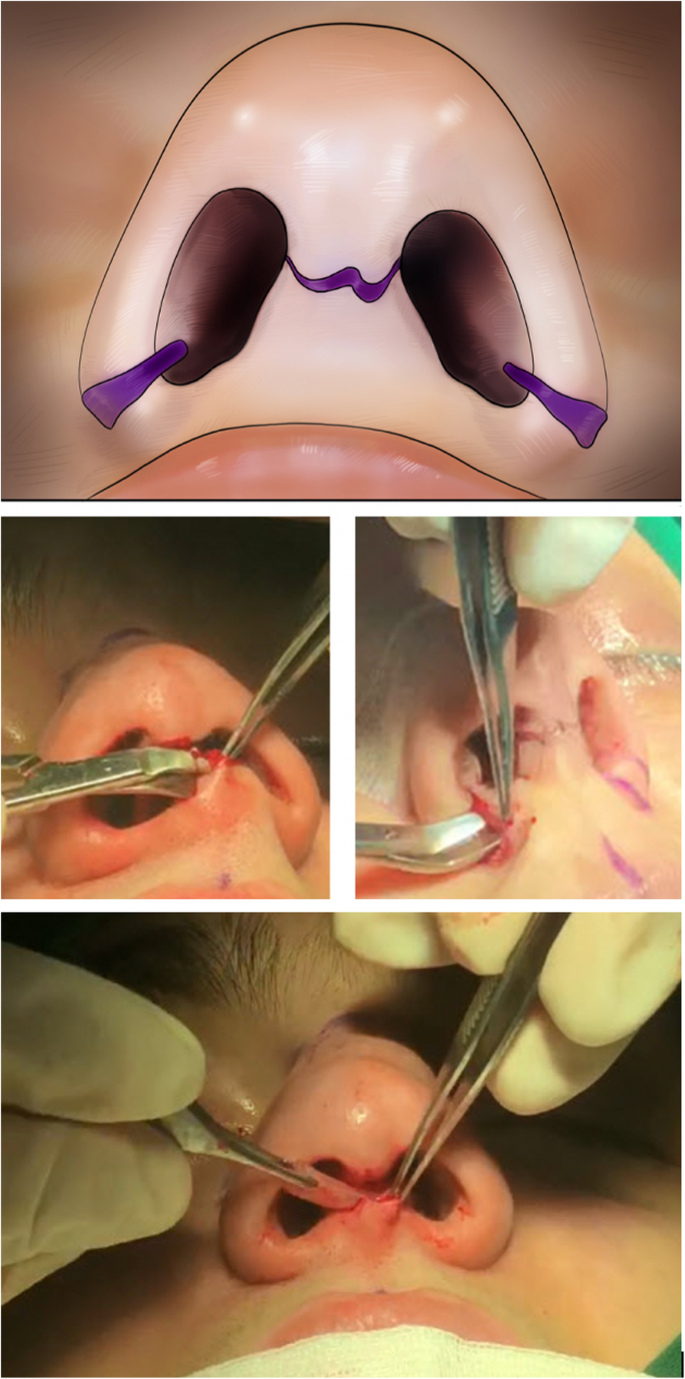

All procedures were performed by an oral and maxillofacial surgeon in the hospital setting during 2018–2020. Informed consent was obtained after the surgical procedure, potential risks, and complications were described to all patients. The surgery was performed under general anesthesia. Local anesthesia (2% lidocaine with epinephrine at a concentration of 1:80,000) was administered in the surgical field.
The cartilaginous graft is harvested from the nasal septum in the priority for each patient. If it is not possible, cartilaginous ear grafts, allografts, and even autogenous rib grafts were the next donor sites consecutively. In the open approach, access to the sill area was achieved through a rhinoplasty incision made, in the lower third of the columella. Also, access to the sill area in patients, who underwent alar base reduction, was achieved through an incision in the nostril base area (Fig. 1). A subcutaneous pocket was dissected from the deficient nasal sill, using converse dissecting scissors.
Commonly, due to the presence of scar tissue and inadequate normal soft tissue in cleft lip and palate patients, there is often a need for scar revision and muscle repositioning. However, since this study aimed to show that nasal sill augmentation is not necessarily limited to cleft patients, individuals with simple congenital asymmetry in the sill area were also selected for photographic evaluation.
The nasal sill augmentation process is not usually performed as an independent procedure and is often a complementary corrective procedure during rhinoplasty or cleft lip repair process, after ensuring the proper form and symmetry of the ala. The remaining steps of the procedure, such as suturing incisions and dressing, are performed during standard rhinoplasty procedures.
For more information about different steps and variations of this technique, the supplemental materials section of this article is available on the website of the Journal of Oral and Maxillofacial Surgery (videos 1 and 2).
Additional file 1: Video 1 Nasal sill augmentation through nostril base approach.
Additional file 2: Video 2 Nasal sill augmentation through columellar approach.
Literature review
A literature review was performed to evaluate previously described techniques addressing for nasal sill deficiency. A comprehensive search was undertaken in PubMed and Scopus databases, without any time restrictions, using keywords related to reconstruction, augmentations, or graft procedures in the nasal sill area, which are as follows: (“nostril sill” OR “nasal sill”) AND (“Reconstructive Surgical Procedures” OR augmentation OR reconstruction OR graft).
Figure 2 presents the PRISMA flowchart regarding the search results and screening. Title, abstract, and full-text screening was performed by two independent researchers. Finally, a total of 19 articles were included in this study.
Results
A total number of 54 patients (19 males and 35 females) with a defect in the nasal sill area were included in this study. The mean age of the patients was 31 years. The candidates for nasal sill augmentation included esthetic rhinoplasty patients (n=21), patients with cleft lip nasal deformities (n=12), patients with congenital sill defects (asymmetry or absence of the sill) (n=9), patients who underwent removal of a malignant lesion (n=5), and patients with traumatic injuries (n=7). Thirty-one patients underwent open rhinoplasty; therefore, access to the sill graft was achieved from the lower third of the columella. Also, 23 patients underwent the nasal sill augmentation procedure, using a nostril base approach.
The follow-up duration ranged from 11 months to 3 years (mean 1.3 years). The same surgeon evaluated the patients in the follow-up sessions. The patients’ satisfaction was evaluated using the Rhinoplasty Outcome Evaluation Form (ROF) by Izu et al., adapted from a study by Guillemin et al. [11, 12]. Table 1 presents the mean scores of patients’ satisfaction at the end of the follow-up. There was no report of patients’ dissatisfaction at the end of the follow-up. Also, there were no significant complications, such as infection, bleeding, sensory dysfunction, or remaining asymmetry of the sill area. Figures 3, 4, 5, 6, and 7 present the final outcomes at the end of the follow-up in five patients, who underwent sill graft procedures. Table 2 presents the findings of articles, addressing the sill graft/augmentation in terms of the techniques, approaches, clinical results, and complications.
Discussion
The nasal sill area is a key component of the alar ring, which needs to be considered by surgeons during the nasal base reconstruction procedure [13]. Augmentation of this area is indicated when conditions, such as congenital asymmetrical nostrils, cleft lip and palate, malignancies, or traumatic lesions, occur [20].
Surgical anatomy
The emphasis on the precise anatomical considerations in the sill area helps the surgeon to have a broader horizon to reach the optimal esthetic results. The alar ring is the most caudal area of the nose, which involves the edge of the nostril, extending to the alar base. It contains the alar cartilage with lateral and medial crura, as well as A1 to A4 accessory cartilages, positioned along the tail of the lateral crural cartilage [29] (Fig. 8). The boundaries of the nostril opening (alar ring) contains alar lobules, columellar base, and nostril sill [30]. As an alar ring subunit, the nasal sill is a protuberant soft tissue bridge, extending from the base of the columella to the ala of the nose, separating the upper lip soft tissue from the nasal vestibule cephalocaudally [30]. The nostril sill is situated approximately in the area of A3 and A4 cartilages. Also, the nostril sill can vary based in terms of width, height, and shape (Fig. 9).
In 1995, Irwin et al. categorized the nostril sill into three main types;
-
1.
In Full/Sill-proper type, a protuberant area connects the columella and the ala. It is the most common variant with the greatest muscle and soft tissue thickness of all three [31].
-
2.
In the Point type, the medial and lateral walls of the nostril sill approximate each other to form an apex.
-
3.
In the Flat type, there is no soft tissue protuberance between the vestibule of the nose and the upper lip, with the least soft tissue thickness [31, 32] (Fig. 10).

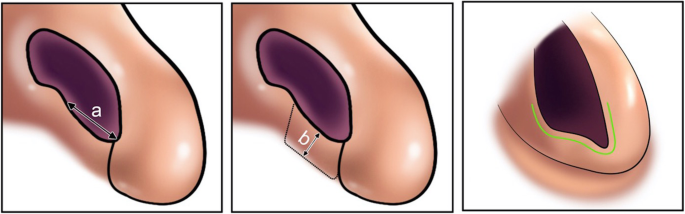

The direct relationship between the nostril shape and sill area can be inferred from two measurable angles in this area. Figure 11 shows the angle between the longitudinal axis of the nostril and the horizontal plane, and the second angle is between the medially inclined nasal sill and the sagittal plane. An elliptical or pear-shaped nostril with a longitudinal axis angle of 45° has higher esthetic values [6]. These angles can be considered and recorded in the patient’s preoperative analysis.
Muscle insertions of the nostril sill area include the depressor septi nasalis, myrtiformis, and dilator naris (DN) muscles, which originate from the maxilla and insert into the soft tissue and skin of the nares. The tela subcutanea cutis (TSC) that can be seen in this area (Figs. 12, 13, and 14) is a folded layer of dermis and subcutaneous tissue that connects the lateral and medial crura when seen from the basal view.
Other anatomical considerations in the sill area include the superficial and deep pitanguy’s ligaments, which extend caudally between the lower lateral cartilages and continue along the superficial orbicularis oris nasalis (SOON) and depressor septi nasalis (DSN) muscles, respectively (Fig. 15).
Our experience in the present study revealed that the proper symmetry and shape of the alar base and nostrils are dependent on the precise evaluation and further reconstruction of the nasal sill dimensions, especially in unilateral deformities where the normal shape of the sill is achieved similar to the normal side. In minor sill defects, muscle repositioning, specific suturing techniques, and small soft tissue grafts may result in the satisfactory elevation of the sill area [19]; however, in larger defects, composite grafts may be required to achieve the desired clinical outcomes [27].
Among esthetic rhinoplasty patients, those who require nasal tip modification and correction of gross septal deviation or perforation, as well as those who undergo esthetic rhinoplasty through an open approach, augmentation of the sill area can be performed using an open approach if needed (Fig. 1b). Also, in esthetic rhinoplasty patients, who require alar base reduction and have defects in the sill area, insertion of the sill graft through the alar base incision can be highly useful (Fig. 1c).
The review of published literature, addressing the concept of nasal sill augmentation, revealed that cleft palate patients require major corrections for sill defects (Table 2). Therefore, special attention must be paid to nasal sill reconstruction in these patients. However, nasal sill reconstruction in these patients is not usually performed as an independent procedure but as part of the cleft repair process. Dissection and repositioning of the orbicularis oris and depressor septi muscles is often the most preferred technique for sill augmentation in these patients [13, 23, 24]. Repositioning of the medial and lateral flaps of the upper lip during cleft closure is another method for reconstruction of the sill area [22]. Although no major complications were reported for this method, the absence of graft can occasionally result in further depression of the sill area in the long term.
As mentioned earlier, no complications were detected among the participants of our study; however, infection, bleeding, ischemia, flap necrosis, complications associated with the harvesting procedure, graft deviation, obvious scar, excessive decrease in the nostril size, impaired ventilation, shortening of the upper lip, and sensory dysfunction are among potential complications, which require strict considerations, especially in the follow-up examinations [10, 20, 23, 25].
Earlobe-derived cartilage grafts do not offer satisfactory esthetic results in the sill area and are associated with complications in some cases [20]. Instead, alveolar bone grafting in 18 unilateral cleft lip and palate patients with tension-free sutures produced optimal esthetic outcomes in the nasal sill area [19], with significant improvement in the width and height measures of the cleft site.
A review of previous studies showed that many of the published techniques are based on the transposition of flaps [13, 14, 18, 22,23,24]. The application of these techniques may be justified for patients with clefts or those with malignancies, where a part of the soft tissue is usually deficient. However, the use of these techniques in patients, who are diagnosed with simple congenital defects, seems extremely aggressive. On the other hand, the conservative design of our technique and the lack of extensive flaps provide an opportunity for nasal sill reconstruction in patients with congenital defects. In other words, the non-invasive design of our technique and providing a solution for nasal sill reconstruction in patients with congenital defects can be considered the most significant advantages of this study. However, the possibility of using our technique for patients with clefts, malignancies, or traumatic lesions cannot be rejected.
Recurrent asymmetry following graft deformity may be the most important limitation of this technique. Overall, ensuring that the graft is stable and fixed in its position can be very helpful in preventing the occurrence of this complication. However, in such cases, a secondary revision intervention is required.
In general, one of the advantages of this procedure is that it is not technique-sensitive, and it is easy to perform. Also, this technique is repeatable and does not produce a remarkable scar in the surgical site. On the other hand, its disadvantage is donor site morbidity.
In conclusion, based on the findings of the present study, our novel technique can be successfully used for reconstructing the nasal sill area, with minimal complications and morbidities in patients, who require esthetic rhinoplasty or have congenital defects, cleft lip deformities, malignancies, or traumatic lesions. It should be noted that in this technique, the proper symmetry and shape of the alar base and nostrils are dependent on the precise evaluation and further reconstruction of the nasal sill dimensions.
Availability of data and materials
All of the data of the patients are available and could be sent to the reviewers, if it is needed.
Abbreviations
- ROF:
-
Rhinoplasty Outcome Evaluation Form
- DN:
-
Dilator naris
- SOON:
-
Superficial orbicularis oris nasalis
- DSN:
-
Depressor septi nasalis
- TSC:
-
Tela subcutanea cutis
References
Khansa I, Khansa L, Pearson GD (2015) Patient satisfaction after rhinoplasty: a social media analysis. Aesthet Surg J 36(1):NP1–NP5 10.1093/asj/sjv095
Lalezari S, Daar D, Mathew P et al (2018) Trends in Rhinoplasty Research: A 20-Year Bibliometric Analysis. Aesthet Plast Surg 42(4):1071–1084. https://doi.org/10.1007/s00266-018-1130-1
Uhm KI, Shin KS, Lee YH, Lew JD (1987) Nostril sill augmentation in secondary cleft lip. Ann Plast Surg 19(5):391–399. https://doi.org/10.1097/00000637-198711000-00001
Foda HMT (2007) Nasal base narrowing: the combined alar base excision technique. Arch Facial Plast Surg 9(1):30–34. https://doi.org/10.1001/archfaci.9.1.30
Ohba N, Ohba M (2016) Preservation of nostril morphology in nasal base reduction. Aesthet Plast Surg 40(5):680–684. https://doi.org/10.1007/s00266-016-0676-z
Kridel RWH, Castellano RD (2005) A simplified approach to alar base reduction: a review of 124 patients over 20 years. Arch Facial Plast Surg 7(2):81–93. https://doi.org/10.1001/archfaci.7.2.81
Tucker KR (1981) Reconstruction of the ala and nostril sill using proximate composite grafts. Plast Reconstr Surg 68:148–150
Farkas LG, Hreczko TA, Deutsch CK (1983) Objective assessment of standard nostril types--a morphometric study. Ann Plast Surg 11(5):381–389. https://doi.org/10.1097/00000637-198311000-00004
Chang LS, Son Y, Baek R-M, Kim B-K (2017) Anatomical Reconstruction of the Nasal Floor in Complete Unilateral Cleft Lip Repair. Ann Plast Surg 79(4):365–371. https://doi.org/10.1097/SAP.0000000000001093
Wei J, Herrler T, Xu H, Li Q, Dai C (2017) Double composite tissue Z-plasty technique for anatomical restoration of severe nasal deformity in secondary unilateral cleft lip. Ann Plast Surg 79(4):359–364. https://doi.org/10.1097/SAP.0000000000001160
Guillemin F, Bombardier C, Beaton D (1993) Cross-cultural adaptation of health-related quality of life measures: Literature review and proposed guidelines. J Clin Epidemiol 46(12):1417–1432. https://doi.org/10.1016/0895-4356(93)90142-n
Izu SC, Kosugi EM, Brandão KV, Lopes AS, Garcia LBS, Suguri VM, Gregório LC (2012) Normal values for the Rhinoplasty Outcome Evaluation (ROE) questionnaire. Braz J Otorhinolaryngol 78(4):76–79. https://doi.org/10.1590/S1808-86942012000400015
Jiang C, Ma H, Yin N (2018) Nostril sill repair by muscle tension line group reconstruction in patients with cleft lip. JAMA Facial Plast Surg 20(2):168–169. https://doi.org/10.1001/jamafacial.2017.1657
Wang H, Fan F, You J, Wang S (2012) Correction of unilateral cleft lip nose deformity using nasal alar rim flap. J Craniofac Surg 23(5):1378–1381. https://doi.org/10.1097/SCS.0b013e318252fd09
Kim MC, Choi DH, Bae SG, Cho BC (2017) Correction of minor-form and microform cleft lip using modified muscle overlapping with a minimal skin incision. Arch Plast Surg 44(3):210–216. https://doi.org/10.5999/aps.2017.44.3.210
Aranmolate S, Aranmolate SO, Zeri RS, Gbeneol T, Ajani AO (2016) Upper triangular flap in unilateral cleft lip repair. J Craniofac Surg 27(3):756–759. https://doi.org/10.1097/SCS.0000000000002448
Yin N, Song T, Wu J, Chen B, Ma H, Zhao Z, Wang Y, Li H, Wu D (2015) Unilateral microform cleft lip repair: application of muscle tension line group theory. J Craniofac Surg 26(2):343–346. https://doi.org/10.1097/SCS.0000000000001460
Agarwal R, Bhatnagar SK, Pandey SD, Singh AK, Chandra R (1998) Nasal sill augmentation in adult incomplete cleft lip nose deformity using superiorly based turn over orbicularis oris muscle flap: an anatomic approach. Plast Reconstr Surg 102(5):1350–1359. https://doi.org/10.1097/00006534-199810000-00005
Kim SW, Park SO, Choi TH, Hai DT (2012) Change in upper lip height and nostril sill after alveolar bone grafting in unilateral cleft lip alveolus patients. J Plast Reconstr Aesthet Surg 65(5):558–563. https://doi.org/10.1016/j.bjps.2011.11.046
Friedman HI, Stonerock C, Brill A (2003) Composite earlobe grafts to reconstruct the lateral nasal ala and sill. Ann Plast Surg 50(3):275–281; discussion 281. https://doi.org/10.1097/01.sap.0000046782.74684.4b
Ayhan M, Gorgu M, Erdogan B, Aytug Z, Aksungur E, Sy´ly´strely´ O, Oztan Y (2006) Various applications of chondrocutaneous composite grafts in secondary cleft lip nose patients. J Craniofac Surg 17(6):1065–1071. https://doi.org/10.1097/01.scs.0000231628.10511.bb
Lu T-C, Lam WL, Chang C-S, Kuo-Ting Chen P (2012) Primary correction of nasal deformity in unilateral incomplete cleft lip: a comparative study between three techniques. J Plast Reconstr Aesthet Surg 65(4):456–463. https://doi.org/10.1016/j.bjps.2011.11.006
Chang L, Wang J, Yu L, Zhang B, Zhu C (2012) Closure of nasal floor by mucosal flaps on the upper lip margin in wide unilateral complete cleft lip. J Craniofac Surg 23(3):866–868. https://doi.org/10.1097/SCS.0b013e31824ddc43
Park Y-W, Kwon K-J, Kim M-K (2015) Double-layered reconstruction of the nasal floor in complete cleft deformity of the primary palate using superfluous lip tissue. Maxillofac Plast Reconstr Surg 37(1):35. https://doi.org/10.1186/s40902-015-0035-z
Jayarajan R (2015) Total columella reconstruction using nasocheek flap and septal cartilage graft. Plast Reconstr Surg Glob Open 3(11):e559–e559. https://doi.org/10.1097/GOX.0000000000000538
Yim E, Tinklepaugh AJ, Libby TJ, Ciocon DH (2020) Reconstruction of a deep cutaneous lip defect involving the nasal sill. Dermatologic Surg Off Publ Am Soc Dermatologic Surg [et al] 46(1):123–125. https://doi.org/10.1097/DSS.0000000000001656
Vecchione TR (1980) Reconstruction of the ala and nostril sill using proximate composite grafts. Ann Plast Surg 5(2):148–150. https://doi.org/10.1097/00000637-198008000-00011
Watanabe T, Matsuo K (1996) Augmentation with cartilage grafts around the pyriform aperture to improve the midface and profile in binder’s syndrome. Ann Plast Surg 36(2):206–211. https://doi.org/10.1097/00000637-199602000-00020
Daniel RK, Palhazi P, Gerbault O, Kosins AM (2014) Rhinoplasty: the lateral crura–alar ring. Aesthet Surg J 34(4):526–537. https://doi.org/10.1177/1090820X14528464
Daniel RK, Glasz T, Molnar G, Palhazi P, Saban Y, Journel B (2013) The lower nasal base: an anatomical study. Aesthet Surg J 33(2):222–232. https://doi.org/10.1177/1090820X12472695
Oh M, Lee D, Choi T, Kim S (2010) Anatomic study of the nostril sill classification and histologic findings. Ann Plast Surg 65(1):56–59. https://doi.org/10.1097/SAP.0b013e3181bb49d9
Irwin MS, Milling MAP (1995) The morphology of the nostril sill. Eur J Plast Surg 18(6):276–280. https://doi.org/10.1007/BF00178539
