Following facial trauma and admission to the trauma unit, patients normally receive a CT scan of the facial skeleton. If a unilateral mandibular condyle fracture is diagnosed, the introduced workflow can be used for further treatment planning. It is mandatory to use high-resolution CT scans with a maximum thickness of layers of 1 mm for detailed display (depiction) of bony structures of the fracture site. This is a precondition for using the software’s anatomical segmentation tool, as well as manufacture CAD-CAM-based implants. It is important to mention that only patients who suffer from a unilateral condylar fracture and with symmetric mandibular rami can be included. The workflow is not applicable for comminuted condylar fractures, bilateral condylar fractures, and in patients with asymmetric mandibular rami. For the virtual repositioning, the non-fractured, healthy mandibular ramus is firstly segmented by the inbuilt algorithm. The resulting virtual object or segment of the non-fractured ramus needs to be verified and corrected by hand if necessary. The focus needs to be on the posterior edge and the mandibular notch between the muscular process and the mandibular head. Following this, the ramus of the fractured side, without the proximal fragment, has to be segmented. Only then is the proximal fragment segmented. The non-fractured mandibular ramus is mirrored and aligned with the fractured ramus in order to help with the repositioning. To find the correct position, the posterior edge, the mandibular notch, and the lateral curvature in the coronary plane should align as much as possible (Fig. 1).
After successful matching, the fracture line projected onto the segment of the mirrored healthy mandibular ramus indicates where the implant needs to be positioned. In this area, the surface of the segment can be used as a template to produce the PSI (Fig. 1, upper left).

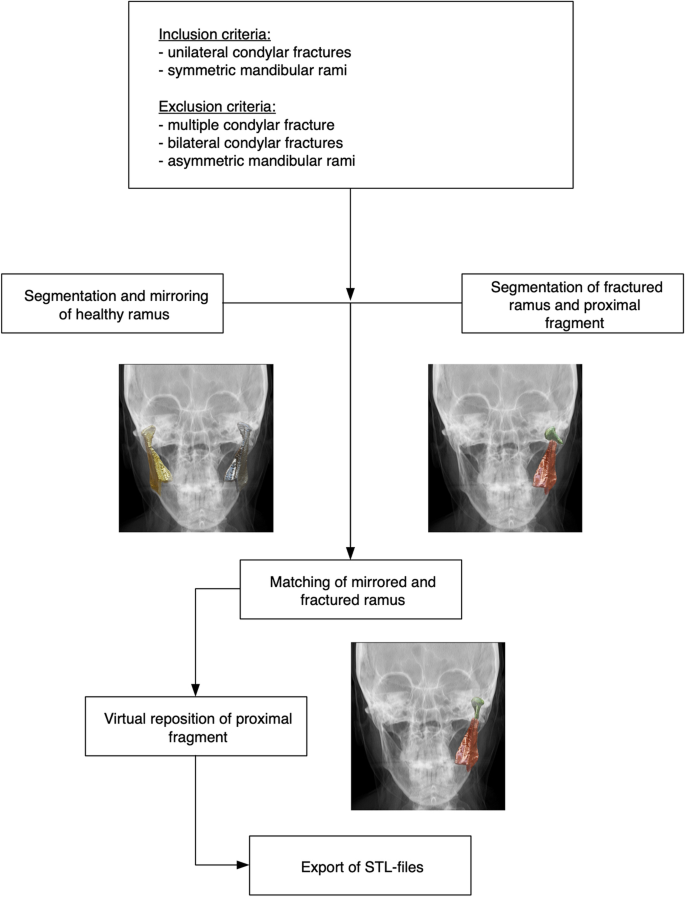

If there is incongruence between the two mandibular rami, a virtual repositioning of the fractured mandibular condyle is necessary. The mirrored healthy ramus is aligned to the fractured ramus as closely as possible. The aforementioned third segment (proximal fragment) can be repositioned using the mirrored ramus as a template structure. The correct position of the ramus and the fragment can be used to produce the PSI (Fig. 2). Subsequently, the segments are exported as STL-Files. In order to highlight the fracture site, the segments can be 3D printed in different colors. The resulting 3D model could be used to customize a standard osteosynthesis plate as an intermediate step to manufacturing the magnesium-based alloy PSI (Fig. 3). All these steps are summarized in our developed workflow (Fig. 4).
