Three-dimensional computed tomography evaluation of craniofacial characteristics according to lateral deviation of chin

  • 100 Accesses

Abstract

Background

The relationship between the lateral deviation of chin and the upper and middle facial third asymmetry is still controversial. The purpose of this study is to evaluate the correlation of upper and middle facial third asymmetry with lateral deviation of chin using 3-dimensional computed tomography. The study was conducted on patients who underwent orthognathic surgery from January 2016 to August 2017. A total of 40 patients were included in this retrospective study. A spiral scanner was used to obtain the 3-dimensional computed tomography scans. The landmarks were assigned on the reconstructed 3-dimensional images, and their locations were verified on the axial, midsagittal, and coronal slices. The Pearson correlation analysis was performed to evaluate the correlation between chin deviation and difference between the measurements of distances in paired craniofacial structures. Statistical analysis was performed at a significance level of 5%.

Results

In mandible, the degree of chin deviation was correlated with the mandibular length and mandibular body length. Mandibular length and mandibular body length are shorter on the deviated-chin side compared to that on the non-deviated side (mandibular length, r = −0.897, p value < 0.001; mandibular body length, r = −0.318, p value = 0.045). In the upper and middle facial thirds, the degree of chin deviation was correlated with the vertical asymmetry of the glenoid fossa and zygonion. Glenoid fossa and zygonion are superior on the deviated-chin side than on the non-deviated side (glenoid fossa, r = 0.317, p value = 0.046; zygonion, r = 0.357, p value = 0.024).

Conclusion

Lateral deviation of chin is correlated with upper and middle facial third asymmetry as well as lower facial third asymmetry. As a result, treatment planning in patients with chin deviation should involve a careful evaluation of the asymmetry of the upper and middle facial thirds to ensure complete patient satisfaction.

Background

Facial asymmetry is a relatively common feature with a prevalence rate of 21–85%. In majority of cases, facial asymmetry is mild and hardly recognizable, and hence, surgical intervention is not usually necessary [1,2,3,4]. However, patients with apparent facial asymmetry may not be satisfied with their appearance; such patients are more likely to opt for surgical intervention for esthetic and occlusal improvement [3].

The most common type of facial asymmetry is observed in the lower third of face with lateral deviation of the chin (75%) [3]. The most common cause is unilateral mandibular hyperplasia, i.e., enlargement of the mandible [5]. Functional disharmony of the masticatory muscles may be associated with lower facial third asymmetry with lateral deviation of chin [6].

Facial asymmetry often involves varying degrees of upper (5%) and middle (36%) facial third asymmetries [3]. In a previous study, asymmetry of the glenoid cavity, a type of upper and middle facial third asymmetry, was reported [7]. Asymmetry of the glenoid cavity is caused by defects in generation, proliferation, migration, and differentiation of cranial neural crest cells [8] or craniofacial structure modeling from the cerebrum [9,10,11]. As a result, asymmetry of the glenoid cavity causes lateral deviation of the chin [7].

The relationship between the lateral deviation of chin and the upper and middle facial third asymmetry is still controversial. López Buitrago et al. reported lateral deviation of chin is associated with upper and middle facial third asymmetry, while Kwon et al. reported lateral deviation of chin is not closely related with upper and middle facial third asymmetry [7, 12].The purpose of this study was to evaluate the correlation of upper and middle facial third asymmetry with lateral deviation of chin using 3-dimensional computed tomography (3-D CT).

Methods

Patients

The study was conducted on patients who underwent orthognathic surgery at the Department of Oral and Maxillofacial surgery, Gangnam Severance Hospital, Seoul, Korea, between January 2016 and August 2017. Patients with (1) history of trauma to the jaw and (2) congenital deformities, such as cleft lip and/or palate, were excluded from this study. Finally, 40 patients (18 males and 22 females; mean age, 25.50 years [range, 19 to 42]) were included this retrospective study. This study was approved by Gangnam Severance Hospital Institutional Review Board (Approval No. 3-2019-0119)

Image acquisition and analysis

A spiral scanner was used for 3-D CT scans advised before orthognathic surgery for pre-surgical evaluation. (SOMATOM sensation 64; Siemens, Erlangen, Germany). During the process of CT scan, the patient’s teeth were maintained in centric occlusion, and the scan was obtained with following settings: gantry angle of 0°, 1024 × 1024 matrix, 120 kV, 90 mA, 1.0 mm slice thickness, and 0.5 sec gantry rotation time. The CT analysis software was used to reconstruct the digital imaging and communication in medicine (DICOM) images into 3-D images (Mimics version 23.0; Materalise Dental, Leuven, Belgium).

3-dimensional reference plane and craniofacial landmarks

Landmarks were assigned on the reconstructed 3-D image, and their locations were verified on the axial, midsagittal, and coronal slices. The landmarks and measurements of the craniofacial structures to be performed were selected with reference to previous studies [12, 13]. The various landmarks studies are summarized in Figs. 1, 2 and Table 1.

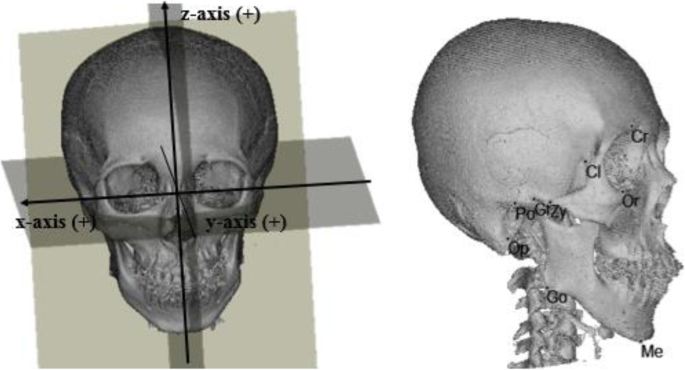

Fig. 1
figure1

Three-dimensional reference planes and craniofacial landmarks. Cr, crista galli; Cl, clinoid process; Op, opisthion; Po, porion; Me, menton; Go, gonion; Gf, glenoid fossa; Or, orbitale; Zy, zygonion

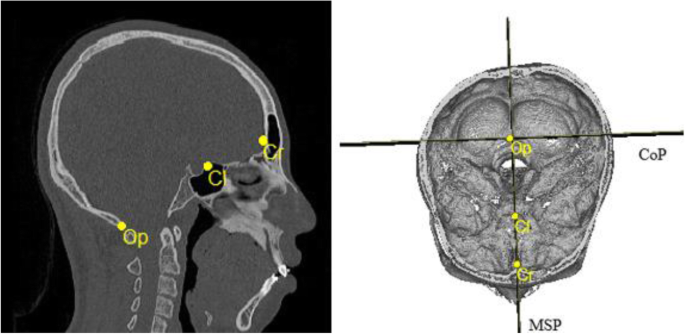

Fig. 2
figure2

Computed tomography (CT) scans of craniofacial landmarks. Cr, crista galli; Cl, clinoid process; Op, opisthion; MSP, midsagittal plane; CoP, coronal plane

Table 1 Description of craniofacial landmarks and reference planes

To determine the standard orientation, 3-D reference planes were initially located. The axial plane (AxP) was defined as a plane including the porion (Po) on both sides and the left orbitale (OrL). The midsagittal plane (MSP) was defined as a plane perpendicular to the AxP, including the crista galli (Cr) and the midpoint of the anterior clinoid process (Cl). The coronal plane (CoP) was defined as a plane perpendicular to the AxP and the MSP passing through opisthion (Op).

Craniofacial measurements

The craniofacial measurements performed in the study are summarized in Table 2. Distance between the menton (Me) and MSP was defined as dMe, for convenience of comparison; (+) indicated right side deviation of menton. In the mandible, distance from the condylar superius (Con) to Me, distance from gonion (Go) to Me, and the distance from Con to Go were defined as mandibular length (dML), mandibular body length (dMBL), and ramal height (dRH), respectively. Distance from glenoid fossa (Gf) to MSP, CoP and AxP was defined as dGfx, dGfy, and dGfz, respectively. Distance from orbitale (Or) and zygonion (Zy) to each plane was defined as the same way.

Table 2 Description of craniofacial measurements of distances

Differences between the measurements of distances in the paired craniofacial structures are given in Table 3. (R-L) was the mean difference between the measurements of distances in the paired craniofacial structures. (R-L) from MSP, CoP, and AxP was defined as x(R-L), y(R-L), and z(R-L). A positive value of x(R-L) indicates that the right craniofacial structure is more lateral than the left craniofacial structure from MSP, positive value of y(R-L) indicates that the right craniofacial structure is more anterior than the left craniofacial structure from CoP, and positive value of z(R-L) indicates that the right craniofacial structure is more superior than the left craniofacial structure from AxP. The relationship between the measurements of distances in the paired craniofacial structures and chin deviation was studied.

Table 3 Description of difference between the measurements of distances in paired craniofacial structures.

Statistical analysis

To avoid inter-observer errors in measurements, all the measurements were performed by a single observer. The Pearson’s correlation analysis was performed to evaluate the correlation between chin deviation and difference between the measurements of distances in paired craniofacial structures. Statistical analysis was performed at a significance level of 5% with SPSS version 25.0 (IBM Corp, Armonk, NY, USA).

The intraclass correlation coefficient was used to evaluate intra-observer error by the same observer 1 week apart. In this study, the second set of measurements was used.

Results

Study subjects

The characteristics of patients included in the study are summarized in Table 4. A total of 40 patients (18 males and 22 females; mean age, 25.50 years [range, 19 to 42]) were included in this study. In our study, 18 patients (45%) showed chin deviation to the right side, and 22 patients (55%) showed chin deviation to the left side (mean, −1.82 mm [range, −16.44 mm to 8.44 mm]), and (+) indicates right side deviation of menton. Of the 40 patients, skeletal class III, class II, and class I malocclusions were evident in 33, 3, and 4 patients, as determined by lateral cephalograms.

Table 4 Patients characteristics (N = 40).

The intraclass correlation coefficients of craniofacial distance measurements are shown in Table 5. The intraclass correlation coefficient ranged from 0.91 to 0.99, which showed that data from one observer were very reliable.

Table 5 Intraclass correlation coefficient of craniofacial distance measurements (N = 40).

The correlation between chin deviation and difference between the measurements of distances in paired lower facial third structures

The correlation between chin deviation and difference between the measurements of distances in paired lower facial third structures is shown in Table 6. In the lower facial thirds, the degree of chin deviation was related to mandibular length and mandibular body length. Mandibular length and mandibular body length are shorter on the deviated-chin side compared to that on the non-deviated side (mandibular length, r = − 0.897, value < 0.001; mandibular body length, r = − 0.318, p value = 0.045). However, no significant relation was observed between the degree of chin deviation and ramal height.

Table 6 The correlation between chin deviation and difference between the measurements of distances in paired lower facial third structures (N = 40).

The correlation between chin deviation and difference between the measurements of distances in paired upper and middle facial third structures

The correlation between chin deviation and difference between the measurements of distances in paired upper and middle facial third structures is shown in Table 7. In the upper and middle facial thirds, the degree of chin deviation was correlated with the vertical asymmetry of glenoid fossa and zygonion. Glenoid fossa and zygonion were superior on the deviated-chin side compared to that on the non-deviated side (glenoid fossa, r = 0.317, p value = 0.046; zygonion, r = 0.357, p value = 0.024). However, no significant relation was observed between the degree of chin deviation and position of orbitale.

Table 7 The correlation between chin deviation and difference between the measurements of distances in paired upper and middle facial third structures (N = 40).

Discussion

The purpose of this study was to evaluate the correlation between upper and middle facial third asymmetry and lateral deviation of chin using 3-D CT.

Traditionally, posteroanterior cephalograms, submentovertex view radiographs, or frontal facial photos have been used for diagnosing facial asymmetry. Certainly, these diagnostic modalities have proven their worth over the years. However, they have limited diagnostic abilities due to problems related to magnification, distortion, and superimposition of craniofacial structures [14,15,16,17]. However, 3-D CT reduces errors due to magnification and distortion and allows the quantitative measurements of craniofacial structures [18,19,20].

Currently, the external auditory meatus is regarded as a reliable reference for the analysis of craniofacial characteristics because of its stable shape [21]. Previous 3-D studies use the Frankfort’s horizontal plane as the reference axial plane [22,23,24]. For these reasons, in this study, the Frankfort’s horizontal plane passing through bilateral porion and left orbitale was used as the axial plane. Then, a plane perpendicular to the axial plane passing through the crita galli (Cr) and the midpoint between the anterior clinoid processes (Cl) was defined as midsagittal plane [12]. A plane perpendicular to axial and midsagittal plane with passing through opisthion (Op) was defined as a coronal plane based on the study of Kwon et al .[12].

The glenoid fossa is a depression in the temporal bone that articulates with the mandible to form the temporomandibular joint [25]. Positional changes in the glenoid fossa during growth can lead to facial asymmetry and malocclusion [7]. The location of the orbit and zygomatic bone plays an important role in facial symmetry and esthetics [26, 27]. For these reasons, the glenoid fossa, orbitale, and zygomatic arch were analyzed in this study. Mandibular length, mandibular body length, and ramal height were also analyzed to evaluate lower facial third asymmetry.

In the lower facial thirds, chin deviation is correlated with mandibular length and mandibular body length asymmetry, coincident with the findings of previous studies [12, 21, 28]. Moreover, in our study, chin deviation was also correlated with the upper and middle facial third asymmetry, especially vertical asymmetry of the glenoid fossa and zygomatic arch, coincident with the findings of another stud y[7]. In a previous study, asymmetry of the glenoid cavity, a type of upper and middle facial third asymmetry, was reported [7]. The asymmetry of glenoid cavity is often caused by the defects in generation, proliferation, migration, and differentiation of cranial neural crest cells [8] or craniofacial structure modeling from the cerebrum [9,10,11]. As a result, the glenoid cavity is located superiorly where developmental defects occurred (affected side) [7]. Similarly, supraorbital arch, zygomatic bone, and external auditory meatus are also located superiorly on affected side (orbiculo-zygomatic-meatal and articular asymmetry) [7]. Finally, the asymmetry of glenoid cavity functionally affects condylar position, causing lateral deviation of chin to the affected side [7].

This study showed that lateral deviation of chin is correlated with upper and middle facial third asymmetry as well as lower facial third asymmetry, especially vertical asymmetry of the glenoid fossa and zygomatic arch. Correction of chin deviation by mandibular surgery alone will not correct the asymmetry of the upper and middle facial thirds.

A limitation of this study is that a small number of craniofacial landmarks were analyzed for the correlation with the lateral deviation of chin, and further studies incorporating more number of craniofacial landmarks should be conducted for a deeper understanding of the correlation between the lateral deviation of chin and craniofacial landmarks.

To be best of our knowledge, this is the first study to evaluate craniofacial characteristics associated with the lateral deviation of chin using 3-dimensional imaging modalities. Considering the high prevalence and the impact of facial asymmetry on patient’s treatment outcome, this study is very relevant in the present scenario. Knowledge about the fact that facial symmetry is influenced by the upper and middle thirds of face will help clinicians around the world in proper treatment planning and hence, in providing better treatment to such patients.

Conclusions

Lateral deviation of chin is correlated with upper and middle facial third asymmetry as well as lower facial third asymmetry. Correction of chin deviation by mandibular surgery alone will not correct the asymmetry of the upper and middle facial thirds. As a result, treatment planning in patients with chin deviation should involve a careful evaluation of the asymmetry of the upper and middle facial thirds to ensure complete patient satisfaction.

Availability of data and materials

The data sets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Abbreviations

(R-L):

Difference between the measurements of distances in paired craniofacial structures (right–left)

3-D CT:

3-dimensional computed tomography

AxP:

Axial plane

Cl:

Clinoid process

Con:

Condylar superius

ConL:

Left condylar superius

ConR:

Right condylar superius

CoP:

Coronal plane

Cr:

Crista galli

dGfx:

Distance from Gf to midsagittal plane

dGfx(R-L):

dGfxR–dGfxL

dGfxL:

Left dGfx

dGfxR:

Right dGfx

dGfy:

Distance from Gf to coronal plane

dGfy(R-L):

dGfyR–dGfyL

dGfyL:

Left dGfy

dGfyR:

Right dGfy

dGfz:

Distance from Gf to axial plane

dGfz(R-L):

dGfzR–dGfzL

dGfzL:

Left dGfz

dGfzR:

Right dGfz

DICOM:

Digital imaging and communication in medicine

dMBL:

Mandibular body length, distance from Go to Me

dMBL(R-L):

dMBLR–dMBLL

dMe:

Distance from Me to midsagittal plane

dML:

Mandibular length, distance from Con to Me

dML(R-L):

dMLR–dMLL

dOrx:

Distance from Or to midsagittal plane

dOrx(R-L):

dOrxR–dOrxL

dOrxL:

Left dOrx

dOrxR:

Right dOrx

dOry:

Distance from Or to coronal plane

dOry(R-L):

dOryR–dOryL

dOryL:

Left dOry

dOryR:

Right dOry

dOrz:

Distance from Or to axial plane

dOrz(R-L):

dOrzR–dOrzL

dOrzL:

Left dOrz

dOrzR:

Right dOrz

dRH:

Ramal height, distance from Con to Go

dRH(R-L):

dRHR–dRHL

dZyx:

Distance from Zy to midsagittal plane

dZyx(R-L):

dZyxR–dZyxL

dZyxL:

Left dZyx

dZyxR:

Right dZyx

dZyy:

Distance from Zy to coronal plane

dZyy(R-L):

dZyyR–dZyyL

dZyyL:

Left dZyy

dZyyR:

Right dZyy

dZyz(R-L):

dZyzR–dZyzL

dZyz:

Distance from Zy to axial plane

dZyzL:

Left dZyz

dZyzR:

Right dZyz

Gf:

Glenoid fossa

GfL:

Left glenoid fossa

GfR:

Right glenoid fossa

Go:

Gonion

GoL:

Left gonion

GoR:

Right gonion

Me:

Renton

MSP:

Midsagittal plane

Op:

Opithion

Or:

Orbitale

OrL:

Left orbitale

OrR:

Right orbitale

Po:

Porion

PoL:

Left porion

PoR:

Right porion

x(R-L):

Difference between the measurements of distances in paired craniofacial structures from MSP

y(R-L):

Difference between the measurements of distances in paired craniofacial structures from CoP

z(R-L):

Difference between the measurements of distances in paired craniofacial structures from AxP

Zy:

Zygonion

ZyL:

Left zygonion

ZyR:

Right zygonion
